Underlane Launching Gantry

Launching Type : Auto Launching using Hydraulic Powered Cylinders

•

• Weight of Segment : maximum segment weight 46 Tons
• Total Weight of the Gantry : 450 Tons
• Adjustable Gantry for span : 22, 25, 28, 31 Mtr.
• Minimum Curvature / Radius : 120 Mtr.
• Maximum width of Segment : 8.8 Mtr.
• Maximum height of segment : 2Mtr.

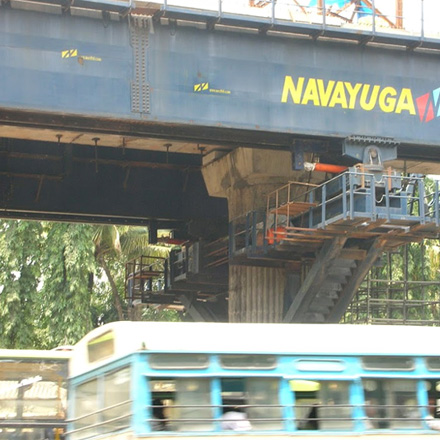

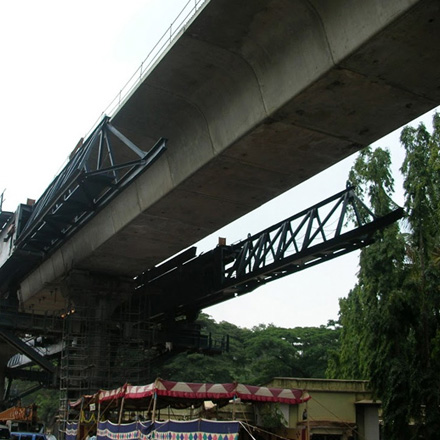

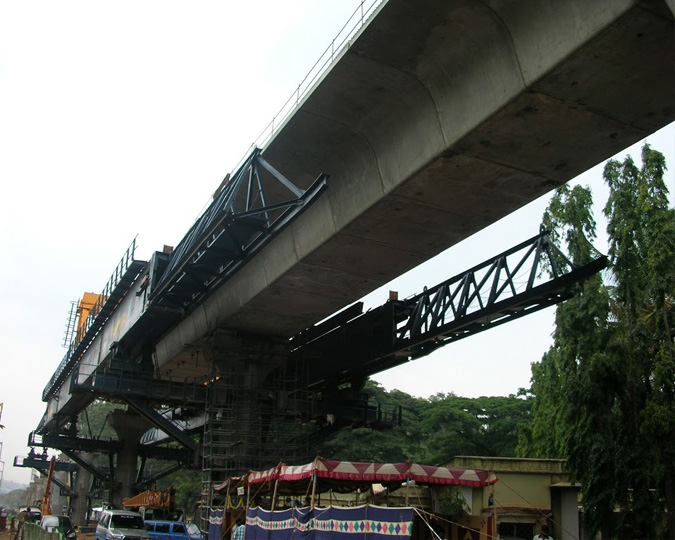

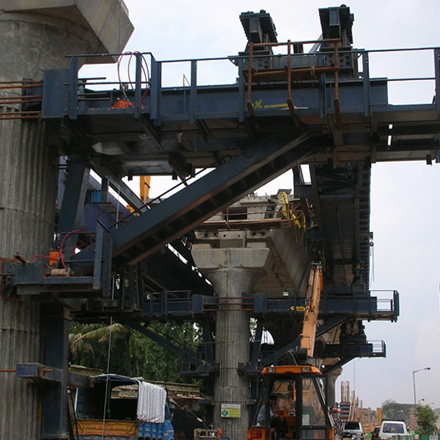

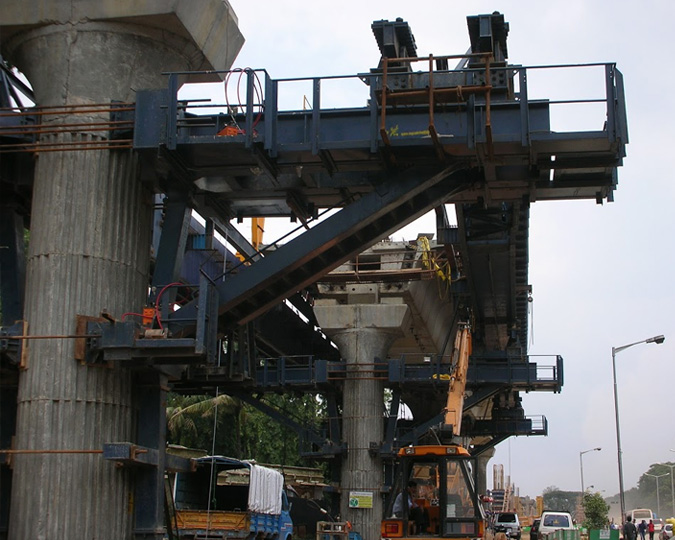

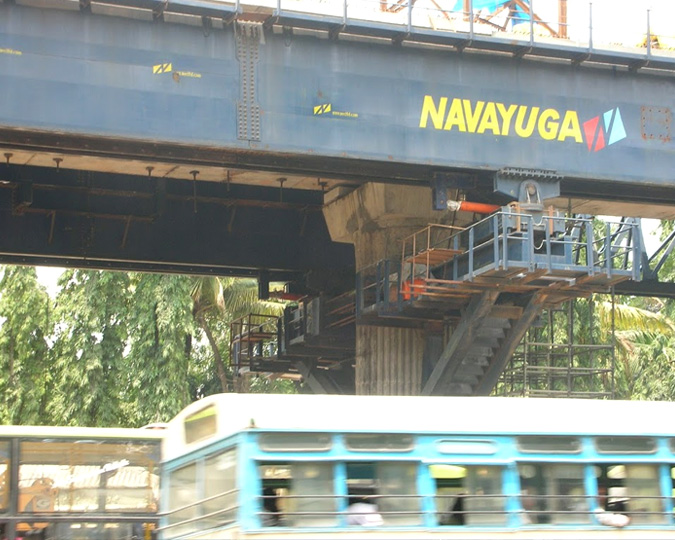

Auto Launching Using Hydraulic Powered Cylinders

•
•
•

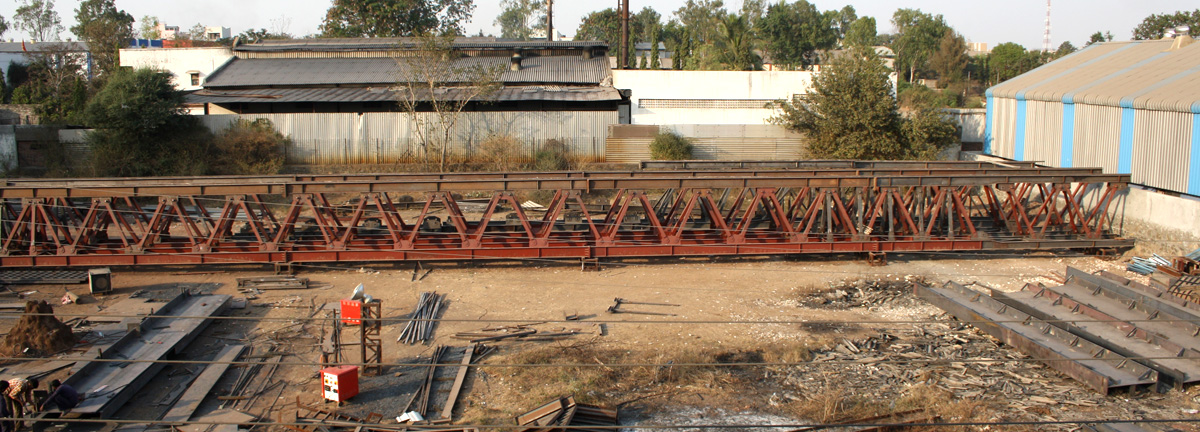

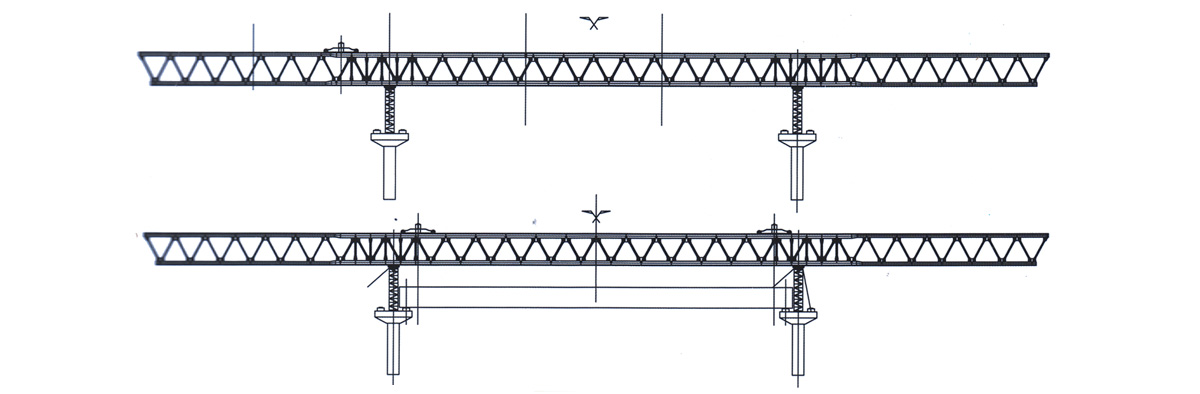

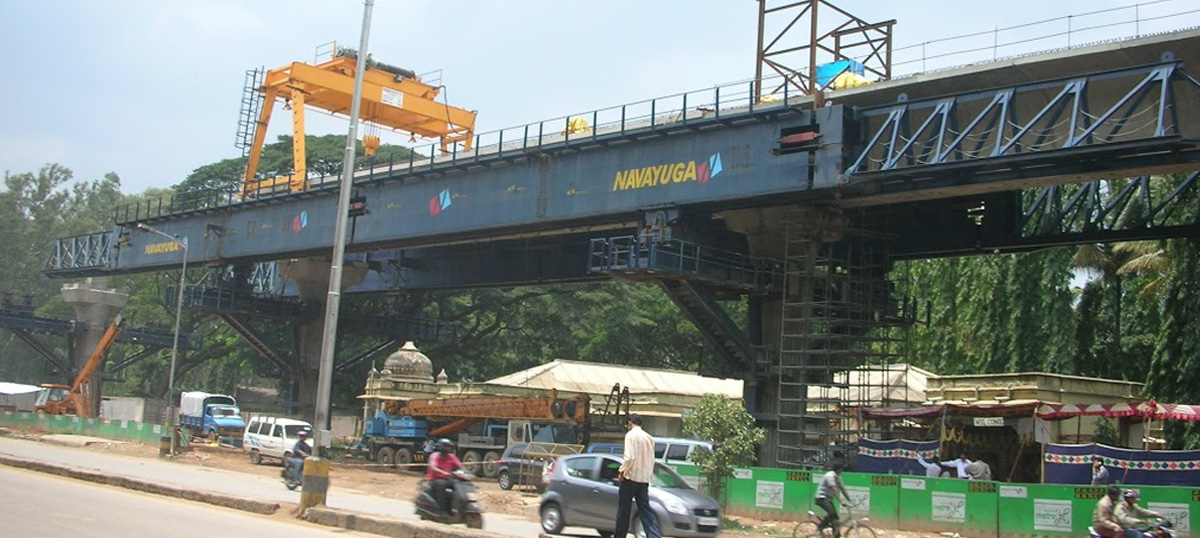

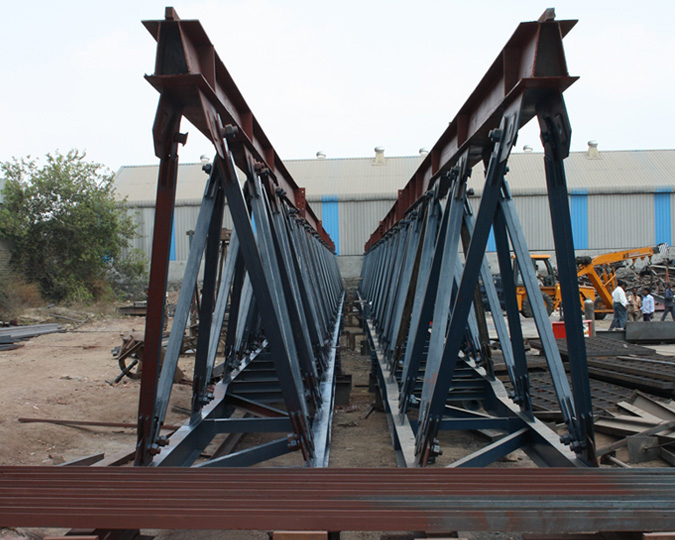

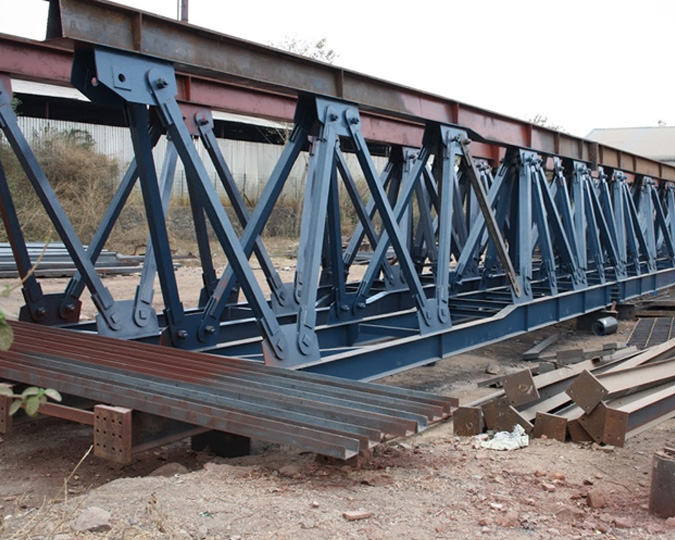

Launching Gantry

•

•

•
•

Girder of 33000 MM span with 75000 MM LG and all pin System full openable
